PRODUCT

We are creating new value through continuous technology development and differentiated services.

POS H/W

APEXA-G 이미지1
APEXA-G 이미지2
APEXA-G 이미지3
APEXA-G 이미지4
APEXA-G 이미지5
APEXA-G 썸네일1
APEXA-G 썸네일2
APEXA-G 썸네일3
APEXA-G 썸네일4
APEXA-G 썸네일5

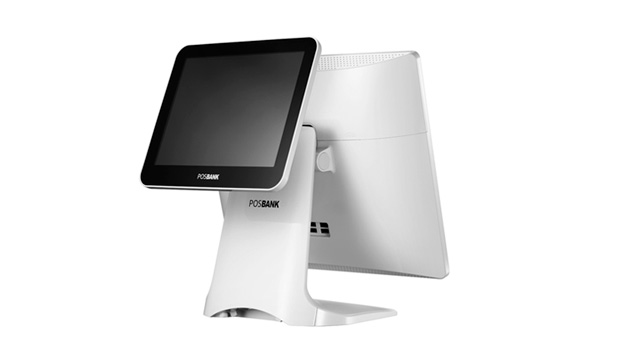

APEXA-G

Compact Powerhouse™

  • Intel®Celeron®Quad-Core J1900 (fanless) with low electric power and high performance
  • PCAP touchy type of accurate touch sensation
  • It provides a bright and clear screen with an LED backlight system
  • Up-to-date IC security module with a high stability
  • Space-saving of the counter with a compact size
  • Quick installation and maintenance with I/O port on the top
  • Enough I/O ports for connections of POS surrounding equipment
  • Flexible installation by using a stand type or a wall mount type
  • luxurious interior design by using the modern and contemporary styles.
  • Optimized for types of business such as a distribution, a food service industry, a specialty store, a franchise

Features of products

Specifications

  1. 상세 이미지1

    01

    High performance processor with low electricity

    It has 2 times improved speed and capacity compared to D25 model having Intel®Celeron®Quad-Core J1900 processor. It could deal with workload at high speed. It offers quiet environment in case of operation due to the fanless type. It applies the design for an efficient cooling system and a dust inflow blocking system, it is durable to use it safely and consistently.

  2. 상세 이미지2

    02

    Sufficient I/O ports supporting

    It offers an enough arrangement of I/O ports on the top and in the rear of the product. It is available to organize the surrounding equipment of various POS with easy for the store management.

  3. 상세 이미지3

    03

    Various options. Organization of convenient equipment

    It is available to organize the POS equipment conveniently due to offering various options needed for improvements of customer convenience such as an IC/MS card reader, a second display or a printer and efficient store management.

  4. 상세 이미지4

    04

    Quick installation. Easy maintenance

    It is easy and fast to access due to arranging the I/O port on the top of the body. It is available to save time and expenses due to having a quick installation and maintenance.

  5. 상세 이미지5

    05

    Safe business environment

    It offers a personal information protection and secure business environment due to installing a up-to-date security module IC/MS reader with high safety.

  6. 상세 이미지6

    06

    Install on the counter, the wall, wherever you want.

    Possible to install depending on the store environments. Device could be installed on the counter or the wall with a wall mount kit of VESA standard.
    (Enable to add a mounting option)

  7. 상세 이미지7

    07

    Make ambience more modern, and space more efficient.

    It is available to show a luxurious interior design by using the modern and contemporary styles. It is available to use the space of a counter efficiently due to the compact and slim sizes of the main body and the stand. You could keep tidy organized space by organizing the cables in the rear of the stand.

Classification Specifications
System Processor J19 Intel® Celeron® J1900 (2.0 GHz) Quad-Core Processor / Fanless (Standard)
Chipset J19 Intel® Bay Trail
Memory J19 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
Storage J19 SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI
OS Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7
Audio Realtek ALC662-VD
Display Type 15" TFT LED Backlight
Resolution 15" 1024 x 768
Brightness 15" 300 cd/m² (typ.)
Touch Screen Projective Capacitive Touch
Interface Display 1 x VGA (With Power Output)
USB J19 6 (Rear 2, Back 4, USB 2.0 x 6)
J19 3(Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
Serial Port 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS)
(COM2~3 RJ-45 , Full Signal)
(COM5 Reserved for Cash Drawer Port)
(COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP)
(COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
LAN 1 x Gigabit Ethernet, RJ-45
Audio 1 x Line-out
Power DC-IN 1 x (4 Pin Connector)
Power Power Supply J19 Adaptor 12V, 5A
Physical & Environmental Operating Temperature 0 ℃ ~ 60 ℃ at 10% to 90% Humidity
Storage Temperature -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
Dimensions (W x H x D) 364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2(in)
Packing Dimension (W x H x D) 500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8(in)
Net Weight 5,300g, 11.6lbs
Packing Weight 8,000g, 17.6lbs
Certification CE, FCC, KC, CB, CCC
Color Matte Dark Grey, High Gloss White
