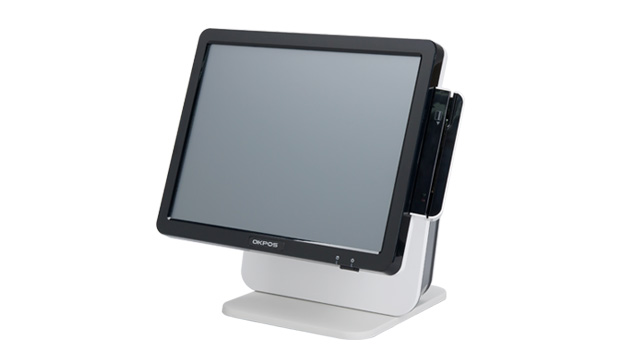

ZED-5

Die-casting structure with stability

  • Installation of SSD basically for a fast processing speed: SSD 64 GB
  • Stable stand with a die-casting type
  • Eco-friendly design of non noise and low heat
  • Saves electric charges due to extra low electricity of a consuming electric power of 4W.
  • Minimizing a board damage due to applying a power discrete type (AC adaptor)
  • 15-inch

Features of products

Specifications

  1. 상세 이미지1

    01

    Has SSD for a fast processing speed

    Available to install DDR3 2GB RAM (MAX. 8GB), and a stable SSD by applying Intel® Core™ i7/i5/i3 Processor with the outstanding speed. It offers various options in order to be suitable for performance demanded by users.

  2. 상세 이미지2

    02

    Stable stand with a die-casting type

    It is available to use it without a risk at the narrow counter due to having a stable stand structure with a die-casting type.

  3. 상세 이미지3

    03

    Front 15-inch screen

    Convenient to mange a store with the 15-inch screen, and it offers clearer screen with high resolution by applying an eco-friendly LED Backlight illuminating system with low electricity. Moreover, it offers a long usage time due to minimizing the power consumption.

  4. 상세 이미지4

    04

    9.7-inch, 15-inch dual monitor

    It offers clients to check it by using clients' monitors, it also offers confidence to clients.

Classification Specifications
CPU Intel D2550 Intel® Atom™ Processor D2550 (1M Cache, 1.86 GHz)
Main Memory DDR3 SODIMM 2GB (up to 4GB by 2 x Slots)
Storage 2.5" SATA-Ⅱ 320GB HDD & SSD(64GB/128GB)
Primary Display LCD 15-inch / 17-inch TFT LCD (250cd), LVDS Interface
Resolution 1024 x 768 / 1280 x 1024
Touch 15-inch 5-wire Resistive , Serial interface
I/O Speaker 1 x 1W
USB 6 x USB (Rear: 4 x USB, Side: 2 x USB)
Serial 4 x RS-232C (Powered DSUB-9, 1 x RJ-45)
PS/2 1 x Keyboard, 1 x Mouse
LAN 1 x Gigabit LAN
VGA 1 x RGB
Audio 2 ports (1 x Mic-in, 1 x Line-out)
Power DC-IN External 60/72W Adapter
Input AC 100~240V/50~60Hz, Output DC 12V/5A or 6A
User Environment Temperature Operating -25℃ to 65℃, Storage -35℃ to 75℃
Size Dimension 414 x 251 x 361 mm (W x D x H)
Weight 8.4kg
Optional Peripherals MSR ISO Ⅱ Track Reading
OS POSReady2009 / POSReady7
2nd Display 15-inch TFT LCD (1024 x 768) * Back-light type : LED
9.7-inch TFT LCD (1024 x 768) * Back-light type : LED
CPU Intel® Celeron® 1037U (2M Cache, 1.80 GHz)
Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
Intel® Processor i3-6100U (3M Cache, up to 2.3GHz)
Intel® Processor i7-6500U (4M Cache, up to 2.5GHz)
