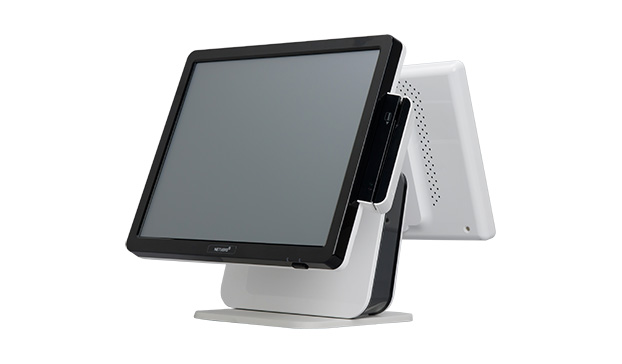

ZED-7
Die-casting structure with stability
- SSD for a fast processing speed: SSD 64 GB
- Stable stand with a die-casting type
- Eco-friendly design of non noise and low heat
- Saves electric charges due to extra low electricity of a consuming electric power of 4W.
- Minimize a board damage due to applying a power discrete type (AC adaptor)
- 17-inch
Features of products
Specifications
-
01
Installation of SSD basically for a fast processing speed
It is available to install DDR3 2GB RAM (MAX. 8GB), and a stable SSD by applying Intel® Core™ i7/i5/i3 Processor with the outstanding speed. If offers various options in order to be suitable for performance demanded by users.
-
02
Stable stand with a die-casting type
It is available to use it without a risk at the narrow counter due to having a stable stand structure with a die-casting type.
-
03
Front 17-inch screen
It is convenient to mange a store with the 17-inch screen, and it offers clearer screen with high resolution by applying an eco-friendly LED Backlight illuminating system with low electricity. Moreover, it offers a long usage time due to minimizing the power consumption.
-
04
9.7-inch and 15-inch Dual monitor
It offers clients to check it by using clients' monitors, it also offers confidence to clients.
| Classification | Specifications | |
|---|---|---|
| CPU | Intel D2550 | Intel® Atom™ Processor D2550 (1M Cache, 1.86 GHz) |
| Main | Memory | DDR3 SODIMM 2GB (up to 4GB by 2 x Slots) |
| Storage | 2.5" SATA-Ⅱ 320GB HDD & SSD(64GB/128GB) | |
| Primary Display | LCD | 15-inch / 17-inch TFT LCD (250cd), LVDS Interface |
| Resolution | 1024 x 768 / 1280 x 1024 | |
| Touch | 17-inch 5-wire Resistive , Serial interface | |
| I/O | Speaker | 1 x 1W |
| USB | 6 x USB (Rear: 4 x USB, Side: 2 x USB) | |
| Serial | 4 x RS-232C (Powered DSUB-9, 1 x RJ-45) | |
| PS/2 | 1 x Keyboard, 1 x Mouse | |
| LAN | 1 x Gigabit LAN | |
| VGA | 1 x RGB | |
| Audio | 2 ports (1 x Mic-in, 1 x Line-out) | |
| Power | DC-IN | External 60/72W Adapter |
| Input AC 100~240V/50~60Hz, Output DC 12V/5A or 6A | ||
| User Environment | Temperature | Operating -25℃ to 65℃, Storage -35℃ to 75℃ |
| Size | Dimension | 414 x 251 x 361 mm (W x D x H) |
| Weight | 8.4kg | |
| Optional Peripherals | MSR | ISO Ⅱ Track Reading |
| OS | POSReady2009 / POSReady7 | |
| 2nd Display | 15-inch TFT LCD (1024 x 768) * Back-light type : LED | |
| 9.7-inch TFT LCD (1024 x 768) * Back-light type : LED | ||
| CPU | Intel® Celeron® 1037U (2M Cache, 1.80 GHz) | |
| Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz) | ||
| Intel® Processor i3-6100U (3M Cache, up to 2.3GHz) | ||
| Intel® Processor i7-6500U (4M Cache, up to 2.5GHz) | ||
