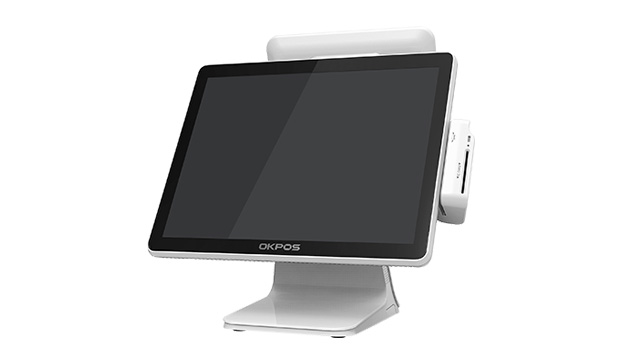

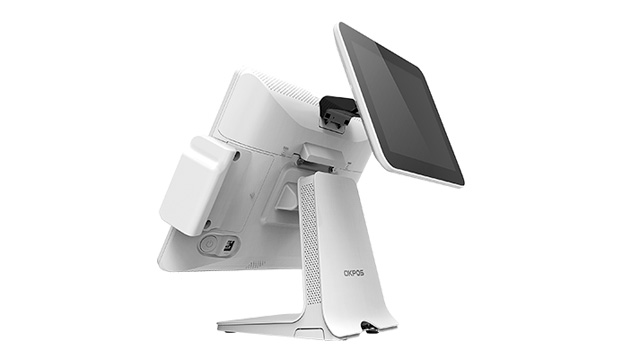

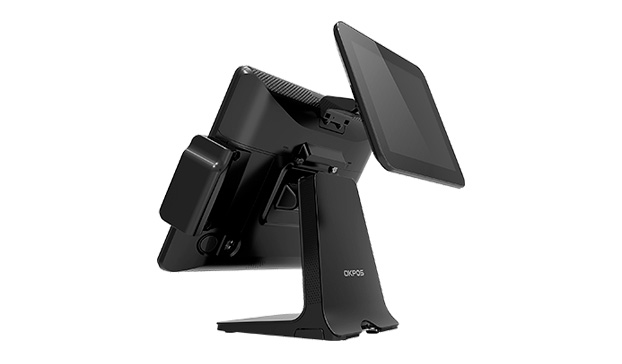

OPTIMUS
Optimized POS "OPTIMUS" suitable for user convenience
- Refined and easy design to install
- Application of I/O panel on the top
- Application of IC card detection on both sides
- Application of PCAP touch type for accurate touch
- Convenient maintenance function
Features of products
Specifications
-
01

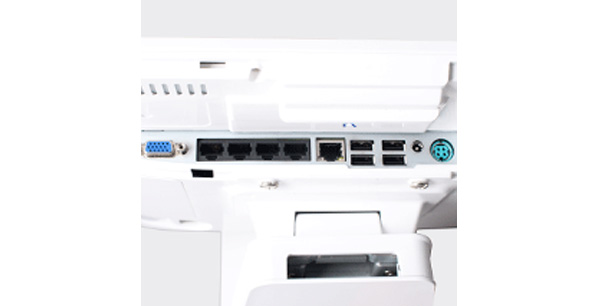

Application of I/O panel on the top
It has traits that offer simple and convenient installation due to having an I/O panel on the top first in Korea, and reduce warranty probability.
-
02

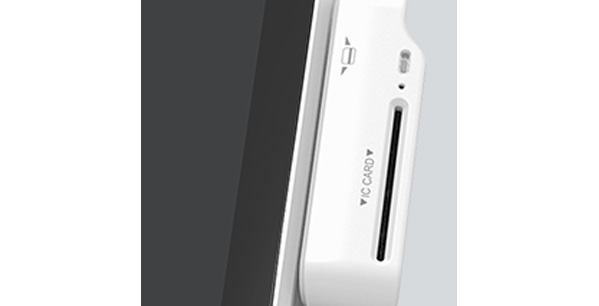

Application of IC card detection on both sides
Reduced errors occurred in the existing one-side IC card recognizer by applying an IC card detection type on both sides
-
03

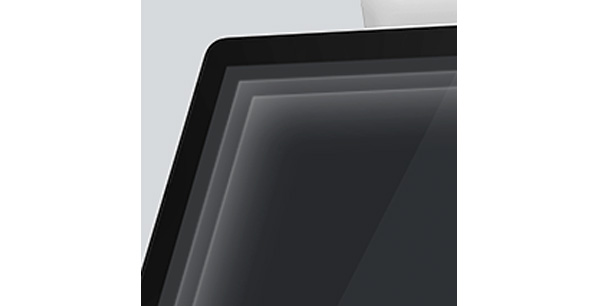

Application of PCAP touch type for accurate touch
Applied the PCAP touch type for a quick reaction and accurate touch sensation, and the screens are bright and clear with the TFT LED Backlight system.
-
04

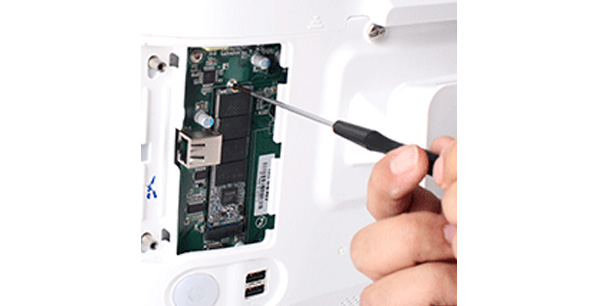

Convenient maintenance function
Able to replace the SSD more easily and conveniently except for an MSR reader.
| Classification | Specifications | |
|---|---|---|
| CPU | Intel J1900 | Intel® Celeron® J1900 (2.0 GHz) Quad-Core Processor / Fanless (Standard) |
| Main | Memory | 2GB Standard DDR3L 1600 MT/s, Socket 1 x SODIMM |
| Storage | 2.5" SATA-Ⅱ 320GB HDD & SSD(64GB/128GB) | |
| Primary Display | LCD | 15" TFT LED Backlight |
| Resolution | 1024 x 768 | |
| Touch | Projective Capacitive Touch 10Point | |
| I/O | Speaker | 1 x 1W |
| USB | 6 (Rear4, Back 2, USB 2.0 x 6), 4 internal (Reserved for MSR, SCR, i-Button/Touch Controller) | |
| Serial | 6 (COM1~3 RJ-45, Full Signal with 5V/12V Power Output set BIOS), (COM4~6 internal Full Sigual, 5V/12V Power Output set Jumper) Reserved for IC_MSR/Cash Drawer Port) | |
| PS/2 | 1 x Keyboard, 1 x Mouse | |
| LAN | 1 x Gigabit Ethernet, RJ-45 | |
| VGA | 1 x VGA (With Power Output) | |
| Audio | 2 ports (1 x Mic-in, 1 x Line-out) | |
| Power | DC-IN | 1 x (4 Pin Connector) |
| 12V OUT(2nd Display Power) | ||
| User Environment | Temperature | Operating -25℃ to 65℃, Storage -35℃ to 75℃ |
| Size | Dimension | 414 x 251 x 361 mm (W x D x H) |
| Weight | 8.4kg | |
| Optional Peripherals | MSR | ISO Ⅱ Track Reading |
| OS | POSReady2009 / POSReady7 | |
| 2nd Display | 2nd Display: 9.7" TFT LCD(1024 x 768) | |
| 9.7-inch TFT LCD (1024 x 768) * Back-light type : LED | ||
| CPU | Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz) | |
