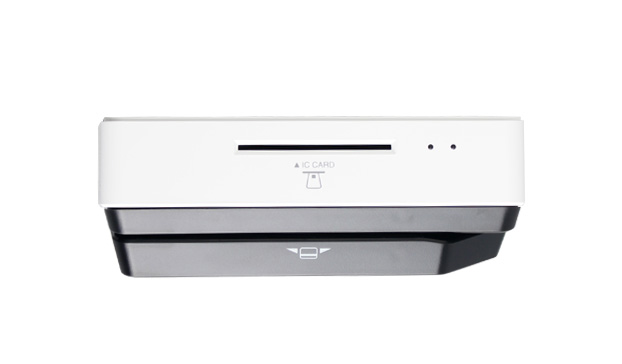

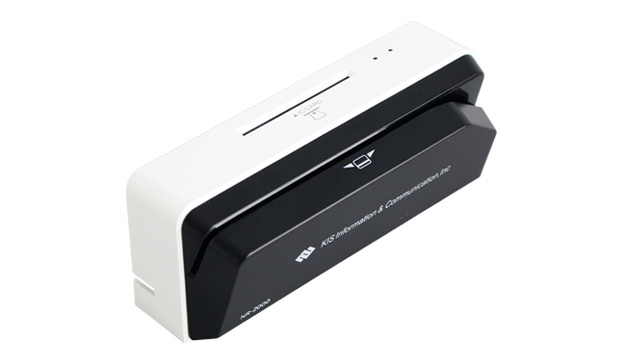

KIS-NR2000
IC card reader
- Security accreditation reader of IC card payment
- Supports of POS linkage function
- Prevention of data spill through card encryption
- Size : 60(W)mm X 153(L)mm X 60(H)mm
Specifications
| Classification | Basic specifications | |
|---|---|---|
| CPU | ARM® Coretex-M4 Microprocessor | |
| Memory | Flash | 1 Mbyte |
| SRAM | 160 Kbyte | |
| OS | Firmware | |
| DISPLAY | 2LED | |
| Reader | MS | ISO-7811 Compatible 2/3 Track |
| IC | ISO-7816 Compatible, EMV L1, EMV L2 Certificate | |
| SOUND | BUZZER | |
| External port | RS232 : 1PORT (RJ11) | |
| POWER | DC 5V, 500mA | |
