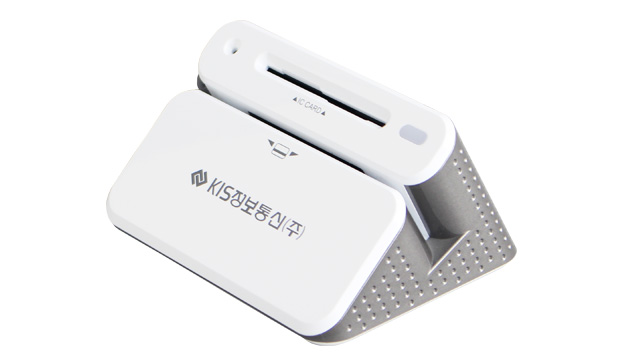

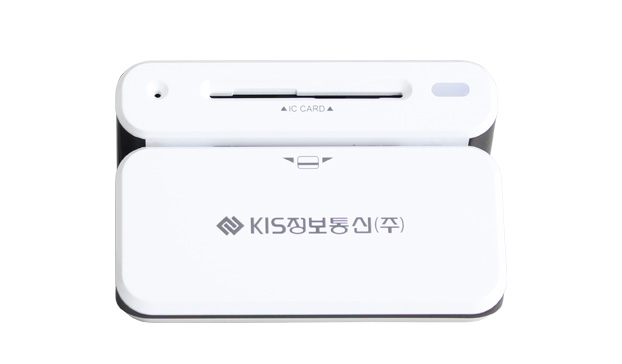

KIS-NR3000
IC card reader
- Two-way IC card module
- MS card reader module
- Table type structure suitable for a PC environment
- 108(W)mm X 83.6(L)mm X 57.4(H)mm
Specifications
| Classification | Basic specifications | |
|---|---|---|
| CPU | ARM® Coretex-M4 Microprocessor | |
| Memory | Flash | 1 Mbyte |
| SRAM | 160 Kbyte | |
| OS | Firmware | |
| DISPLAY | 2LED | |
| Reader | MS | ISO-7811 Compatible 2Track, two-way |
| IC | ISO-7816 Compatible, EMV L1, EMV L2 Certificate, two-way reading | |
| SOUND | BUZZER | |
| External port | RS232 : 1PORT (Serial Cable) | |
| POWER | DC 5V, 500mA | |
