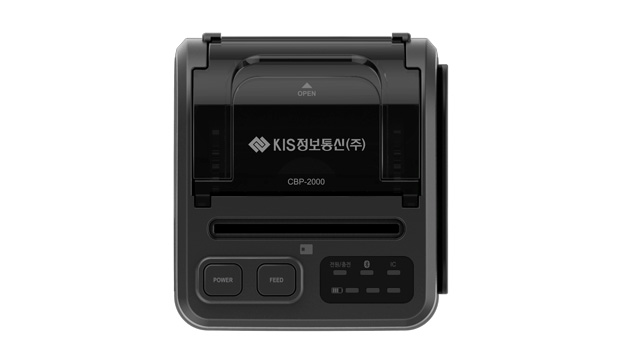

KIS-CBP2000

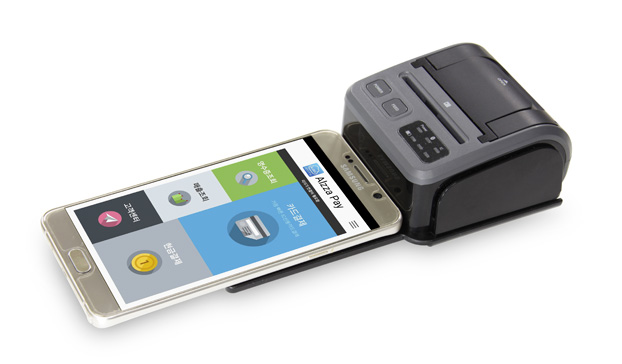

Simple payment device using the BlueTooth function of smartphones
- Payments are processed by connecting to the smartphone after installing the app
- Charging via Micro 5 pin
- IC card payment (EMV Level 1,2 certification)
- Built-in printer type
- Payments to multiple businesses
Specifications
| CPU | S3C2410A |
|---|---|
| Memory | 32MB Nand Flash for Program & Log 16MB SDRam for Data |
| OS | Embedded Linux 2.4.x2.6.18.3 (To be upgraded to 2.6x in the future) |
| Printer | 2 Inch Thermal Printer |
| MS Card read | ISO7811, Track #2,3 Dual |
| IC Card read | ISO7816, EMV Level1 |
| CDMA Modules | WCDMA modules, Certified by SKT |
| Display | LCD 2.4 INCH 132*64 GRAY |
| Key | 15 KEY |
| PORT | Serial PORT - PROGRAM DOWNLOAD and connection to POS |
| Adptor | 8.4V , 800mA |
| Battery | 7.4V , 2,400mA(2cell) |
