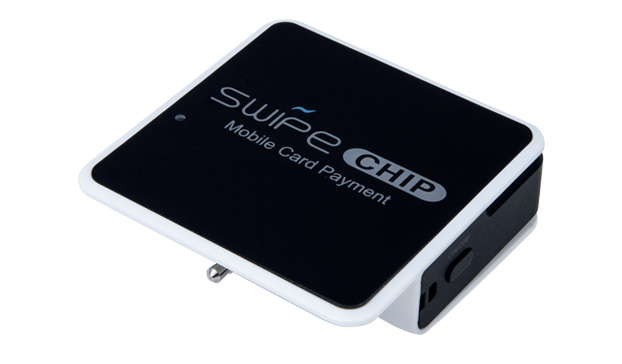

KIS-SC600
Additional payment device using the earphone jack of smartphones
- IC card payment (EMV Level 1,2 certification)
- Payments via the earphone jack
- Payments to multiple businesses
- Synchronization with printer
Specifications
| ITEM | Description |
|---|---|
| H/W Version | S500 v1.5 |
| CPU | ARM Coretex-M3,48Mhz |
| ROM | Flash 512KB |
| RAM | SRAM 120KB |
| H/W encryption | Hardware AES with 128/256-bit keys in 54/75 cycles |
| OS | Rtx |
| MSR | 1,2,3 Track,210FPI,7.5IPS |
| Smart Card |
- IOS7816 implementation - support T0,T1 protocol - support I2C memory card, SLE4418,SLE4428, SLE4432,SLE4442,SLE4436,SLE5536, SLE6636, AT88SC1608, AT45D041 card - support ISO7816 Class A,B AND C(5V,3V,1.8V) card |
| Approval | KC EMV LEVEL1, EMV LEVEL2 |
| Charge Power | 5V ,330mAh |
| Operating Temperature | 0 ºC to +60 ºC |
| Storage temperature | -20 ºC to +90 ºC |
| Dimension | 62 x 62.6 x 17.99 |
| weight | 45g |
| external interface | 3.5pi earplug, 4 pole |
| LED | Red , blue , green |
