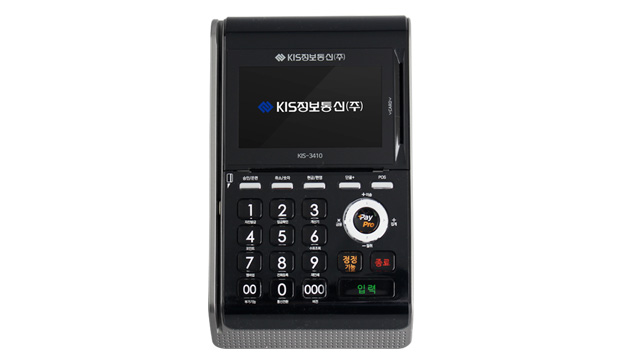

KIS-3410
3 inch color thermal terminal
- IC card payment (EMV Level 1,2 certification)
- Two-way IC payment/ color LCD
- Built-in ethernet connection
- POS ticket is used (70mm, 80mm)
- SIZE : 131(W)mm X 245(L)mm X 116(H)
2” Terminal : POS link (X) / 2” Thermal slip(50mm)
Specifications
| Model name | KIS-3410 |
|---|---|
| color/ size | Size: 131(W)mm × 245(L)mm × 116(H) |
| Screen display | Screen size: 95(H)mm × 53.8(L)mm Resolution: 480 × 272 |
| Key recognition (MSR) | Recognition direction: Two way Recognition speed: 10-120cm/ second Head life: Over one million times |
| Card recognition (smart IC) | Recognition direction: Two way Module life: More than 100,000 times |
| Factor method: Heat-based printing method Width of factor: 72 mm, 576 dot/ line Maximum factor : 48 characters/ line (english), 24 characters/ line (korean) |
|
| Communication method | Serial (POS, dedicated line, pin pad) 3 port (RJ9) |
| Money safe 1 port (RJ9) | |
| Tel (phone, phone line) 2 port (RJ11) | |
| Ethernet (internet) 1 port (RJ45) | |
| Audio | 1W Stereo |
| Button | 21-Key |
| Power (adapter) | Standard input: AC 100-200, 50/60Hz Standard output : DC 24V, 2.5A |
| Weight | 890.8g |
